Mounting sectors

Assembly and replacement

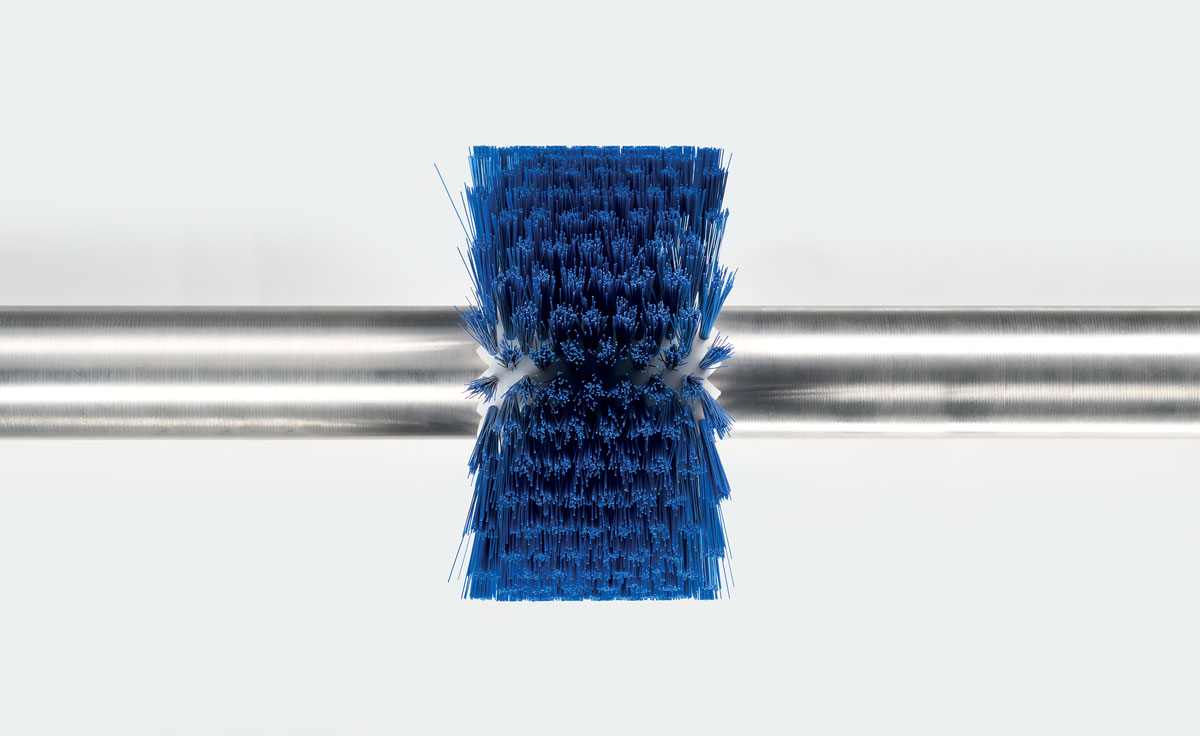

  • The toothed adjustment ring is pushed onto the shaft and gently secured by means of the threaded pins.
  • If a shortened brush sector is used, this is also secured as the mentioned ring.

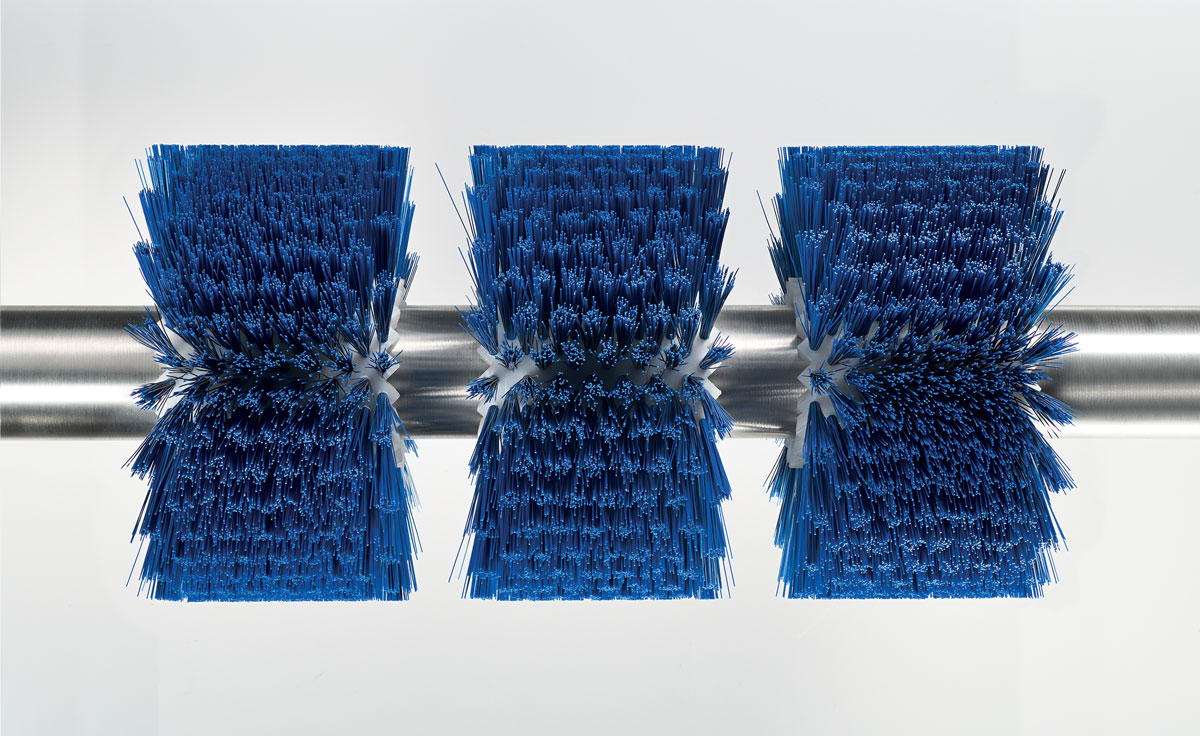

  • The desired number of mounting sectors are pushed onto the shaft and pressed firmly against the toothed adjustment ring to assure the perfect assembly.

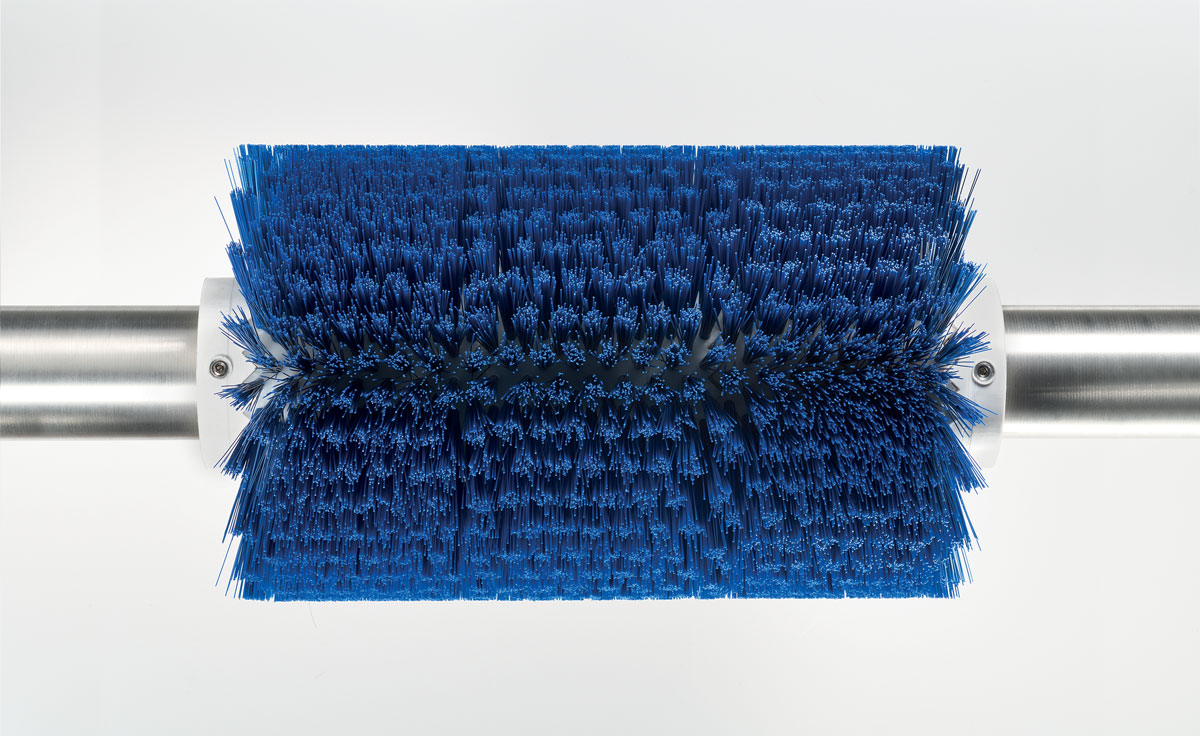

  • Finally press the last shortened sector or adjustment ring firmly against the last mounting sector and lock gradually threaded pins.
  • The parts are replaced in the reverse order.
  • 1
  • 2
  • 3

1. Toothed adjustment ring


2. Shortened sector with threaded pins. To be used when the total length is not a multiple of 100mm.


3. Diameter adapter ring.
