Round brushes

CRC 130

USEFUL LENGTH OF THE BRUSH
The useful length of the brush will be the maximum available with respect to the body length.

Round brushes

Configure your brush

To customize your brush, select from the available variants to automatically compose the request code at the bottom of the page, then click on Request Quote. Remember that all fields are mandatory.

Do you need a technical drawing?

If you need more complex variants, not present in our standard configurator, you can download our interactive PDF, compile it and attach it in the form you will find after clicking on 'Ask for a Quote'.

Pattern

Pattern P1


CRC 130

P1 Expanded
P.R.=20mm. P.L.=20mm.

Pattern P2


CRC 130

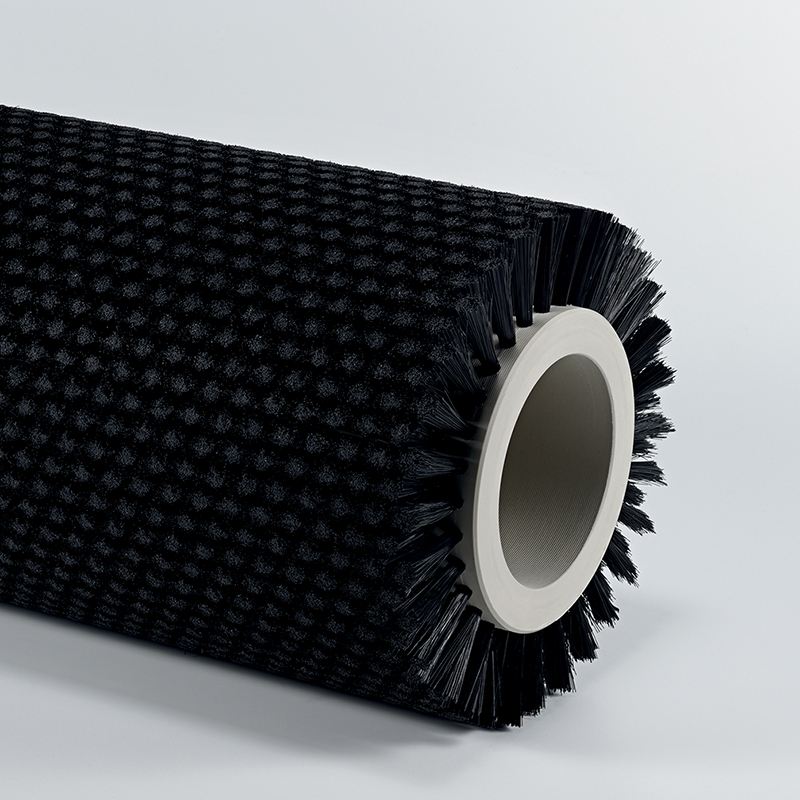

P2 Average
P.R.=15mm. P.L.=15mm.

Pattern P3


CRC 130

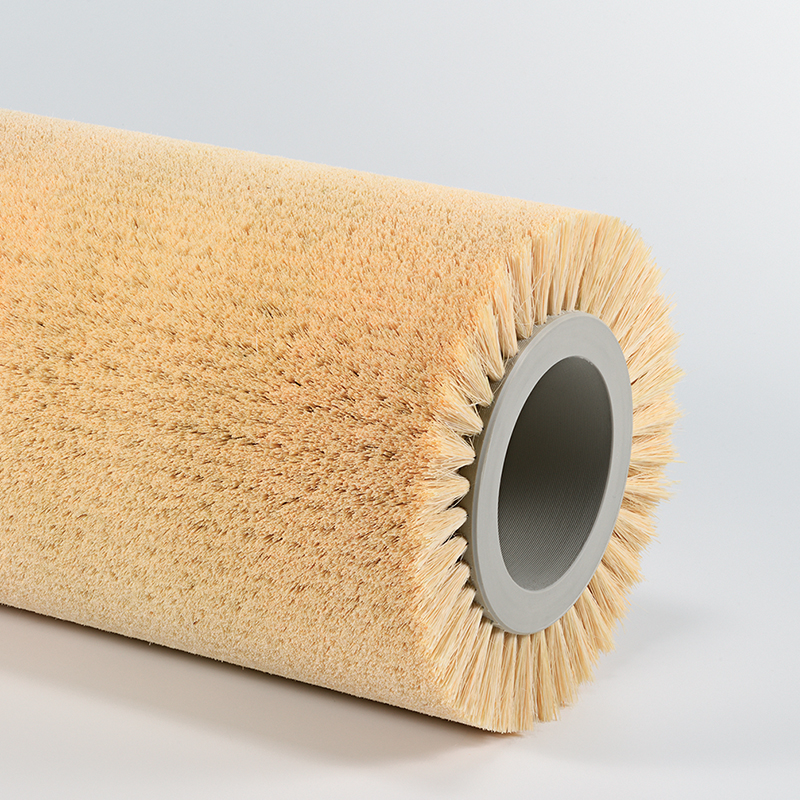

P3 Thick
P.R.=12mm. P.L.=12mm.

Body material

N1 - PVC Polyvinylchloride - Grey
N2 - PP-H Polypropylene - Grey
N3 - PA Polyamide - White

Bristle material

Bristle diameter

F01 - Polypropylene PP; white, smooth
0,30 mm
0,50 mm
0,80 mm
F02 - Polypropylene PP; black, smooth
0,30 mm
0,50 mm
0,80 mm
F03 - Polyester PBT; bianco, smooth
0,30 mm
0,50 mm
0,80 mm
F04 - Polyester PBT; black, smooth
0,30 mm
0,50 mm
0,80 mm
F05 - Polyamide PA6.6; bianco, smooth
0,30 mm
0,60 mm
0,80 mm
F06 - Polyamide PA6.6; black, smooth
0,30 mm
0,60 mm
0,80 mm
F07 - Horsehair; natural black
0,25 mm
F08 - Pig bristle; natural black
0,35 mm
F09 - Mexico fibre; natural yellow
0,40 mm

Hole diameter

(from 60 mm to 100 mm)

Body length

(from 15 mm to 2000 mm)

Overall diameter

(from 140 mm to 430 mm)

Do you need a technical drawing?

If you need more complex variants, not present in our standard configurator, you can download our interactive PDF, compile it and attach it in the form you will find after clicking on 'Ask for a Quote'.

Request Code

Kind of brush
Material
Pattern
Bristle material
ø bristle
ø hole
Body length
ø overall

Pattern

Pattern P1

CRC 130
CRC 130

P1 Expanded
P.R.=20mm. P.L.=20mm.

Pattern P2

CRC 130
CRC 130

P2 Average
P.R.=15mm. P.L.=15mm.

Pattern P3

CRC 130
CRC 130

P3 Thick
P.R.=12mm. P.L.=12mm.

Body material

N1 - PVC Polyvinylchloride - Grey
N2 - PP-H Polypropylene - Grey
N3 - PA Polyamide - White

Bristle material

Bristle diameter

F01 - Polypropylene PP; white, smooth
0,30 mm
0,50 mm
0,80 mm
F02 - Polypropylene PP; black, smooth
0,30 mm
0,50 mm
0,80 mm
F03 - Polyester PBT; bianco, smooth
0,30 mm
0,50 mm
0,80 mm
F04 - Polyester PBT; black, smooth
0,30 mm
0,50 mm
0,80 mm
F05 - Polyamide PA6.6; bianco, smooth
0,30 mm
0,60 mm
0,80 mm
F06 - Polyamide PA6.6; black, smooth
0,30 mm
0,60 mm
0,80 mm
F07 - Horsehair; natural black
0,25 mm
F08 - Pig bristle; natural black
0,35 mm
F09 - Mexico fibre; natural yellow
0,40 mm

Hole diameter

DI - from 60 to 100 mm

Body length

LN - from 15 to 2000 mm

Overall diameter

DE - from 140 to 430 mm
Configure your brush
